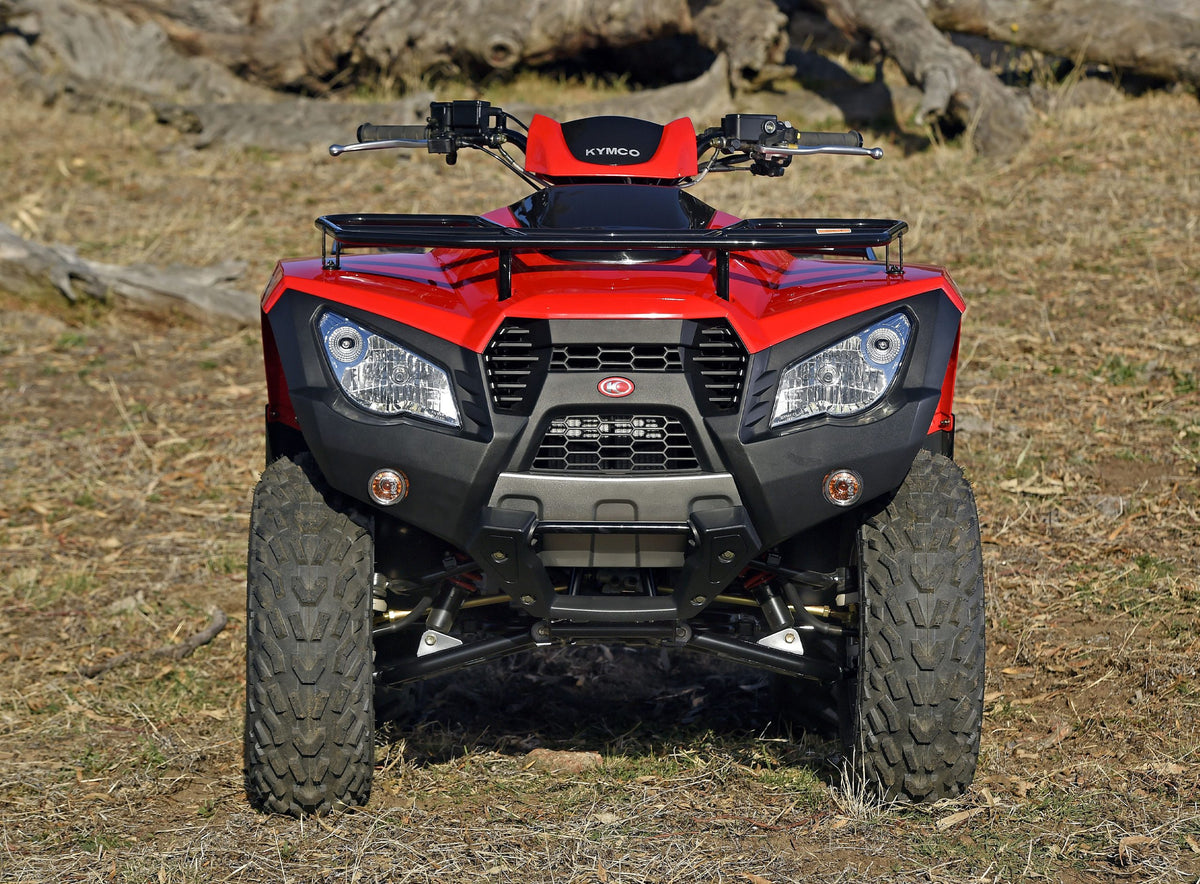

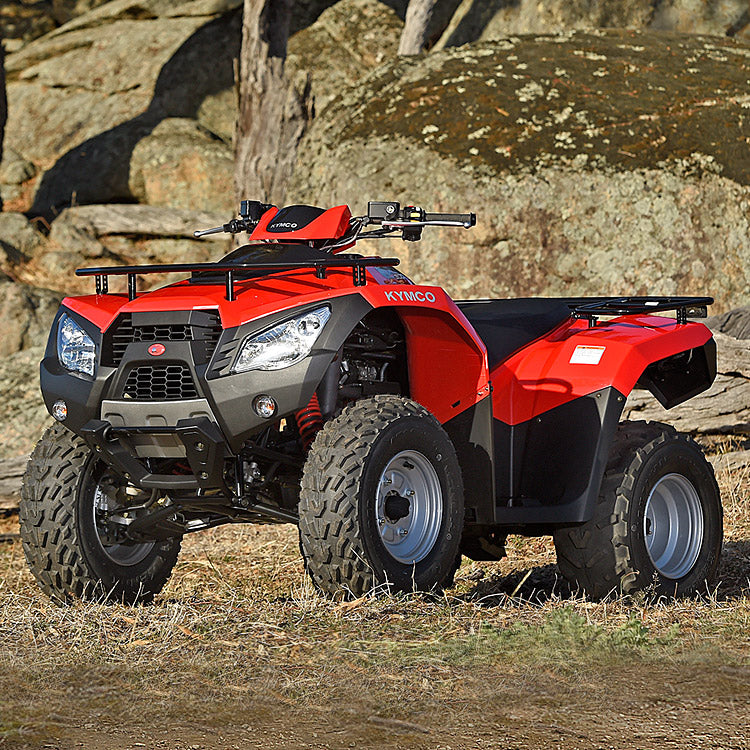

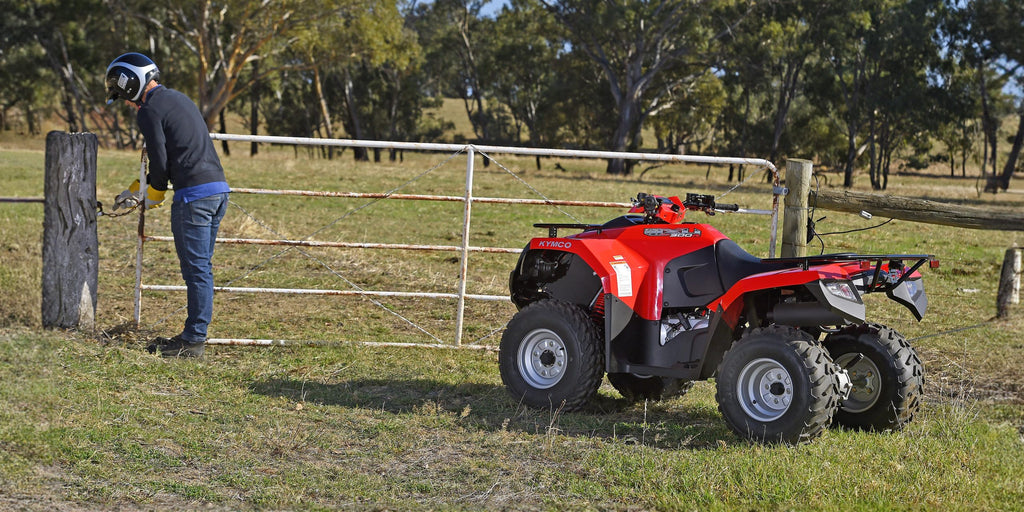

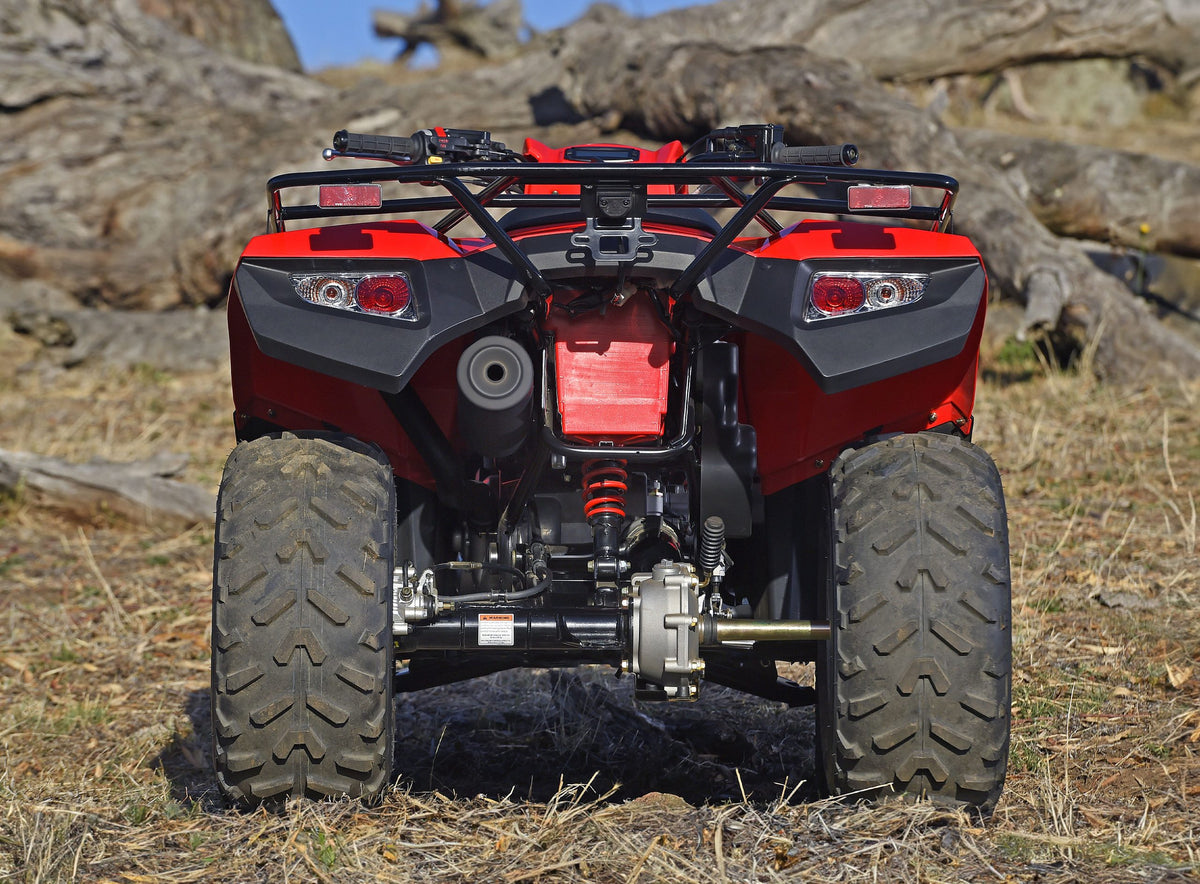

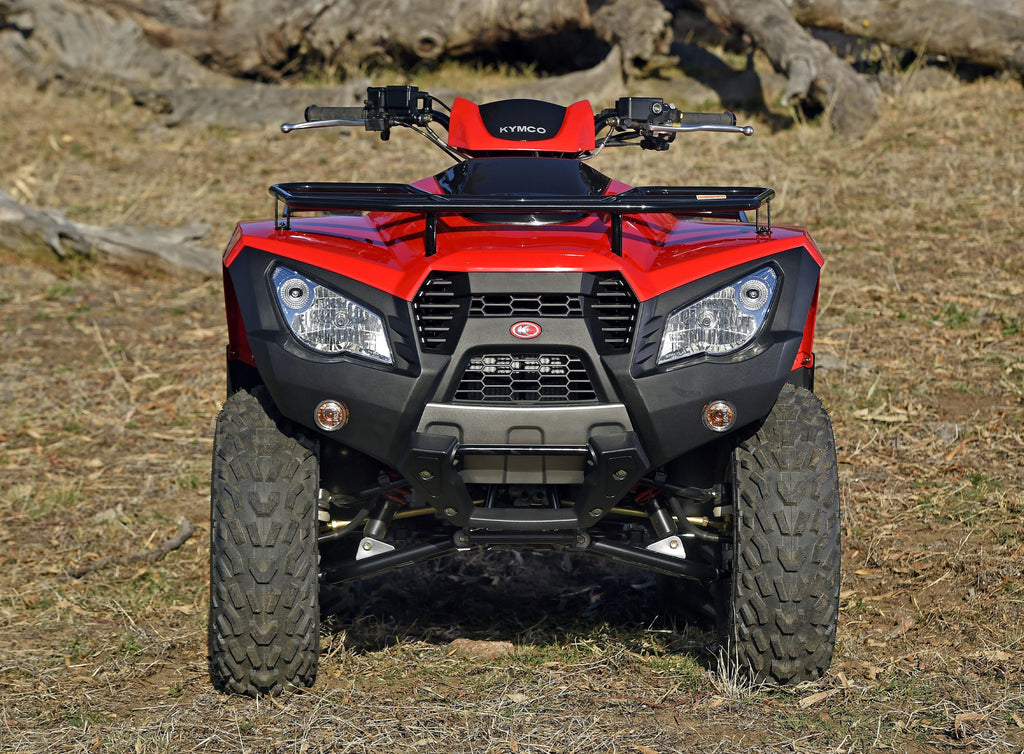

MXU 300r

Loaded with features that you’d only expect on more expensive machines, the new KYMCO MXU 300R has everything you need to get the job done. New and enhanced body styling and design. Dual a-arm independent front suspension and unit-swing rear provide enhanced ground clearance and make for a comfortable ride while the liquid-cooled 19hp four-stroke engine provides all the power you need. Front and rear hydraulic disc brakes make stopping reliable while carry racks make this unit practical on the farm. With value for money features, the KYMCO MXU 300R will make light work of even the busiest day.

Key features

• All The Power You Need — 270cc, SOHC, liquid-cooled four-stroke engine provides reliable power.
• Simple Carburettor — Carburettor with choke is reliable and simple to maintain.
• Easy Twist-and-GO Transmission — CVT automatic transmission with reverse gear for easy operation.
• Reliable Electric Start — Electric start makes starting simple every time.
• Simple Recoil Backup Start — Recoil starter provides an alternative starting method.
• Superior Braking Performance — Front and rear hydraulic disc brakes provide superior braking performance.
• Parking Brake — Parking brake for safe parking while the rider is off the machine.
• Broad Halogen Lighting — Twin front halogen head lamps with high / low beam provide a broad spread of light.
• Rear Halogne Brake Lamps — Rear halogen brake lamps for enhanced visibility.
• Convenient Front and Rear Carry Racks — Front and rear carry racks allow you to haul additional equipment. * Includes tow hitch. Tow ball sold separately.
• At a Glance Instrumentation — Backlit digital dash with speedometer, clock, trip meter, fuel and temperature indicators.
• Responsive Front Suspension — Dual a-arm independent front suspension with twin shock absorbers for stable handling.
• Stable Rear Suspension — Unit-swing rear suspension with single shock absorber.
• Dependable Drive Shaft — Enclosed shaft drive system requires less maintenance and delivers increased reliability.
• Large Fuel Tank — Large 12.5 litre fuel tank will keep you out longer.
• Durable Steel Wheels — 10 inch steel wheels are durable and simple to keep clean.
• Large Under Seat Storage — Secure under seat storage.
• Factory Warranty — Three year factory warranty program* supported by a national dealer network.

Specifications

• Engine
• Engine: SOHC, liquid-cooled, four-stroke
• Displacement: 270cc
• Power: 19.6 HP @ 7000 RPM
• Bore x Stroke: 72.7 x 65.2 mm
• Compression ratio: 11:1
• Fuel system: Carburettor
• Ignition: CDI
• Starting system: Electric with recoil backup
• Transmission: CVT automatic with reverse gear
• Final drive: 2WD, Shaft
• Suspension
• Front suspension: Dual a-arm with twin shock absorbers
• Rear suspension: Unit-swing with single shock absorber
• Front tire size: 22 x 7 – 10 inch
• Rear tire size: 22 x 10 – 10 inch
• Front brakes: Hydraulic disc
• Rear brakes: Hydraulic disc
• Capacity Carrying: 20 kg (front) / 30 kg (rear)
• Towing: 227 kg
• Size / Weight
• Length x Width x Height: 1810 mm x 1030 mm x 1100 mm
• Wheelbase: 1170 mm
• Seat height: 810 mm
• Ground clearance: 250 mm
• Fuel capacity: 12.5 l
• Dry weight: 175 kg
• Other Colour choices: Red
• Warranty: 3 year factory program*

*KYMCO products are supported by our 3-year factory warranty program. The program provides warranty for a period of two years from the date of purchase. However, if you have your vehicle serviced exclusively at an authorised dealer and retain an accurate service history, you may be eligible for a further one year extension. For more details, contact your local KYMCO dealer.

National ride away prices are inclusive of freight to your local dealer and dealer pre-delivery charges. Excludes Regional WA dealers.
